Ebco Cabinet Stay
₹345
₹460
-25%

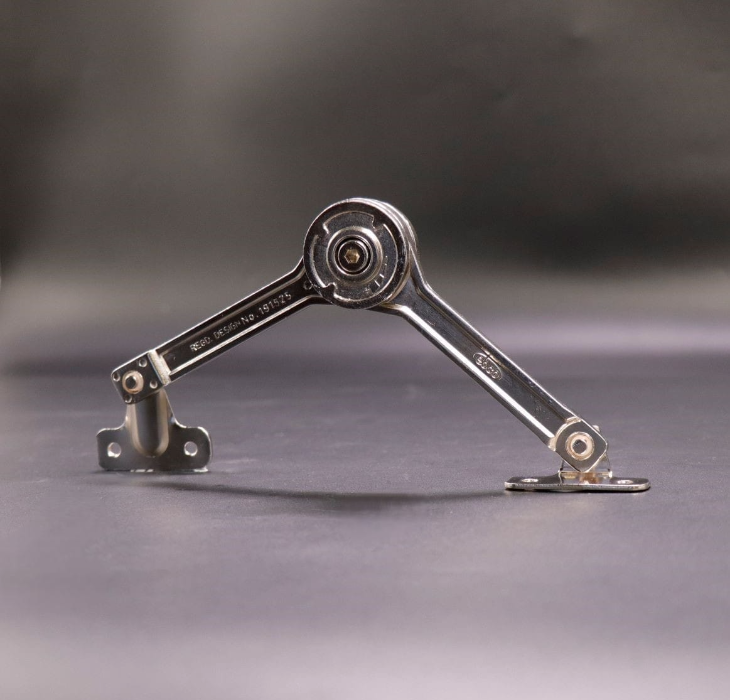

The Ebco Cabinet Stay is a precision-engineered support mechanism designed for cabinets with upward-opening shutters. Featuring a built-in braking arm, it provides controlled shutter movement and helps prevent sudden opening or closing. Manufactured from die-cast zinc with a chrome-plated finish, it is System 32 compatible and allows installation adjustments for different opening angles. The stay can support shutters up to 4 kg with one stay or 7 kg with two stays.
Estimated Delivery: 3-6 Days (Mumbai)
Guranteed Safe Checkout:
The Ebco Cabinet Stay is a durable cabinet hardware solution engineered to provide controlled support and movement for furniture shutters that open upward. Its integrated braking arm regulates the movement of the shutter, helping provide smoother operation while reducing uncontrolled movement during opening and closing.
The stay is designed for use with upward-opening cabinet shutters and is recommended for installation with Slip-on / Click-on Overlay Hinges. Its mounting positions can be varied to achieve different opening angles, providing flexibility during cabinet design and installation.
Manufactured using die-cast zinc and finished with chrome plating, the Cabinet Stay combines structural strength, dimensional stability, and corrosion-resistant surface protection. Its System 32 compatibility allows it to integrate with standardized cabinet construction and hardware layouts.
The Cabinet Stay is available in Right and Left-hand configurations and can be installed as a single or paired stay depending on the shutter dimensions and weight. A single stay supports shutters up to 4 kg, while using two stays increases the supported shutter load to 7 kg.
For safe operation, the maximum opening angle must not exceed 105°. Correct installation and positioning are essential to ensure smooth and reliable shutter movement.
- Brand: Ebco
- Product Name: Cabinet Stay
- Model: Cabinet Stay
- Code: CS1
- Material: Die-Cast Zinc / Casting
- Finish: Chrome Plated
- Application: Cabinets with upward-opening shutters
- Design: Built-in braking arm
- Function: Controlled shutter movement and support
- Handing: Right / Left
- Recommended Hinges: Slip-on / Click-on Hinges (Overlay)
- System Compatibility: System 32
- Opening Angle Adjustment: Mounting position can be varied for different opening angles
- Maximum Opening Angle: 105°
- Item Weight: 0.2 kg
- Item Quantity: 1
- Net Quantity: 1

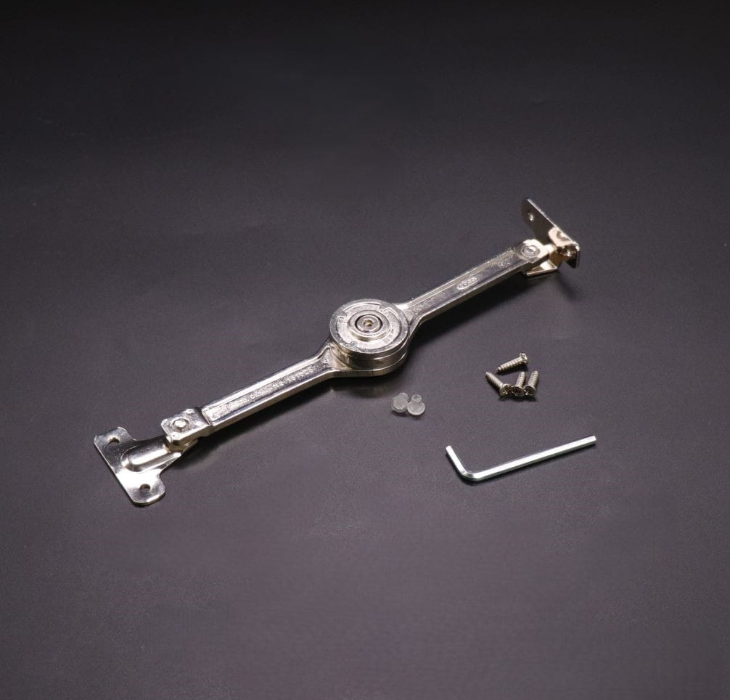

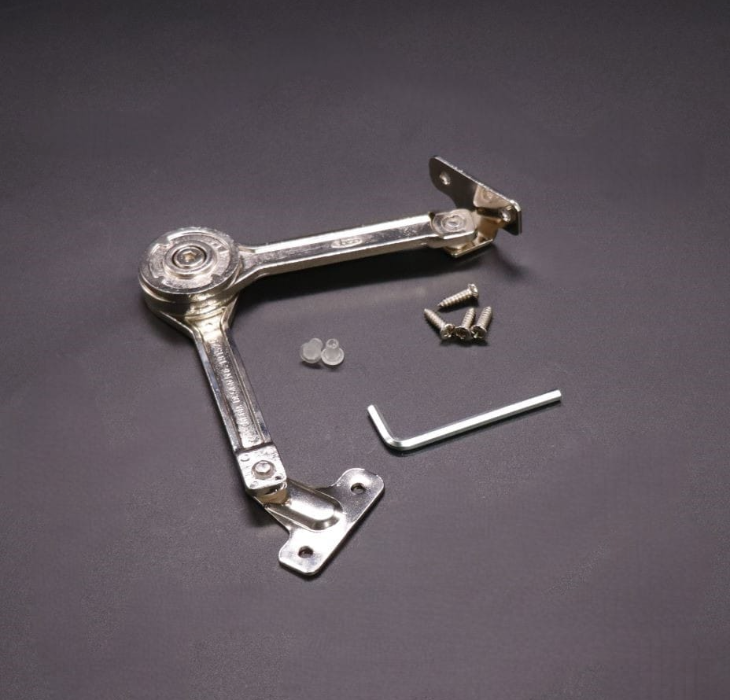

- Package Contents: Cabinet Stay (Right/Left)
- Country of Origin: India
Load & Shutter Size Specifications
- Using 1 Stay:
- Maximum Shutter Load: 4 kg
- Recommended Shutter Size: 400 × 600 mm (H × W)
- Using 2 Stays:
- Maximum Shutter Load: 7 kg
- Recommended Shutter Size: 500 × 900 mm (H × W)
